Replacement upper guide wheels

[cannondale27]

These may be the way to go. The rubber should help prevent flatspotting from Ice. I recommend buying new 6006 bearings (stock Phazer) for them though since ones in there are CHINA and I have seen failures of bearing. Part # and cost TBD but they are off a 2014 AC SnoPro 600. Let us know how they work out long term if you choose to try these.



[yamahas]

Nice find!



[Ruggybuggy]

Is the last picture the skid from the Snopro 600?



[cannondale27]

Yes. That is where the wheels are on.



[Mooseman]

Would you have the exact model number of the sled? Like ZR 6000 RR? Parts catalogs list by these model numbers. The ZR 6000 RR seems to be the closest relative of the racing version but the pictures I'm getting of the wheel are different (no radial ribs like the one in your pic) and the part # is usually stamped on the wheel. Maybe the online fiches haven't caught up yet.



[Ruggybuggy]

Yes. That is where the wheels are on.

You took the skid out of a 2014?



[3-UP]

These guys have the best microfiche

http://www.alpha-sports.com/arctic_cat_parts.htm

These ones show the 30mm wheel

2014 500 Sno-Pro
2014 600 Sno-Pro Factory Racer
2014 600 Cross Country Racer

This should be the one I'm going to see what my local stealer wants for one Monday.

Wheel, Idler
3604-616



[Mooseman]

Cool! That site prices it at $30. I went to PartsPitStop and they price it at $24 and they occasionally send out discount code emails. I'm also going to check with my local AC dealer as I will need a pair soon.

Depending on the price from AC, I wonder if the aftermarket might have a similar replacement. This wheel is used with the following models:

2011 ARCTIC CAT SNO PRO 500 GREEN (S2011ACCPRUSG)
2011 ARCTIC CAT SNO PRO 500 INTERNATIONAL GREEN (S2011ACCPROSG)
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY GREEN (S2011ACDCCUSG)
2011 ARCTIC CAT SNO PRO 600 CROSS COUNTRY INTERNATIONAL GREEN (S2011ACDCCOSG)
2011 ARCTIC CAT SNO PRO 600 GREEN (S2011ACDPRUSG)
2011 ARCTIC CAT SNO PRO 600 INTERNATIONAL GREEN (S2011ACDPROSG)
2012 ARCTIC CAT SNO PRO 500 GREEN (S2012ACCPRUSG)
2012 ARCTIC CAT SNO PRO 500 INTERNATIONAL GREEN (S2012ACCPROSG)
2013 SNO PRO 500 GREEN (S2013ACCPRUSG)
2013 SNO PRO 500 INTERNATIONAL GREEN (S2013ACCPROSG)
2013 SNO PRO 600 CROSS COUNTRY GREEN (S2013ACDCCUSG)
2013 SNO PRO 600 CROSS COUNTRY INTERNATIONAL GREEN (S2013ACDCCOSG)
2013 SNO PRO 600 GREEN (S2013ACDPRUSG)
2013 SNO PRO 600 INTERNATIONAL GREEN (S2013ACDPROSG)
2014 SNO PRO 500 GREEN (S2014ACCPRUSG)



[Mooseman]

Checked Kimpex and Motovan (PPD), nada for aftermarket.



[3-UP]

24 bucks is pretty cheap



[xt_gt]

of course, just when i ordered some from port yami last week, i find this post.

thanks cannondale, haha.
i would have been a test mule & tried them.

good find



[3-UP]

Ordered a set today from my local dealer,hope they work out.



[cannondale27]

Yes 3604-616 is the wheel # from a 2014 SnoPro 600.

3-up that IS a awesome site! Best parts lookup I have ever seen. Thanks for link. Bookmarked it.



[3-UP]

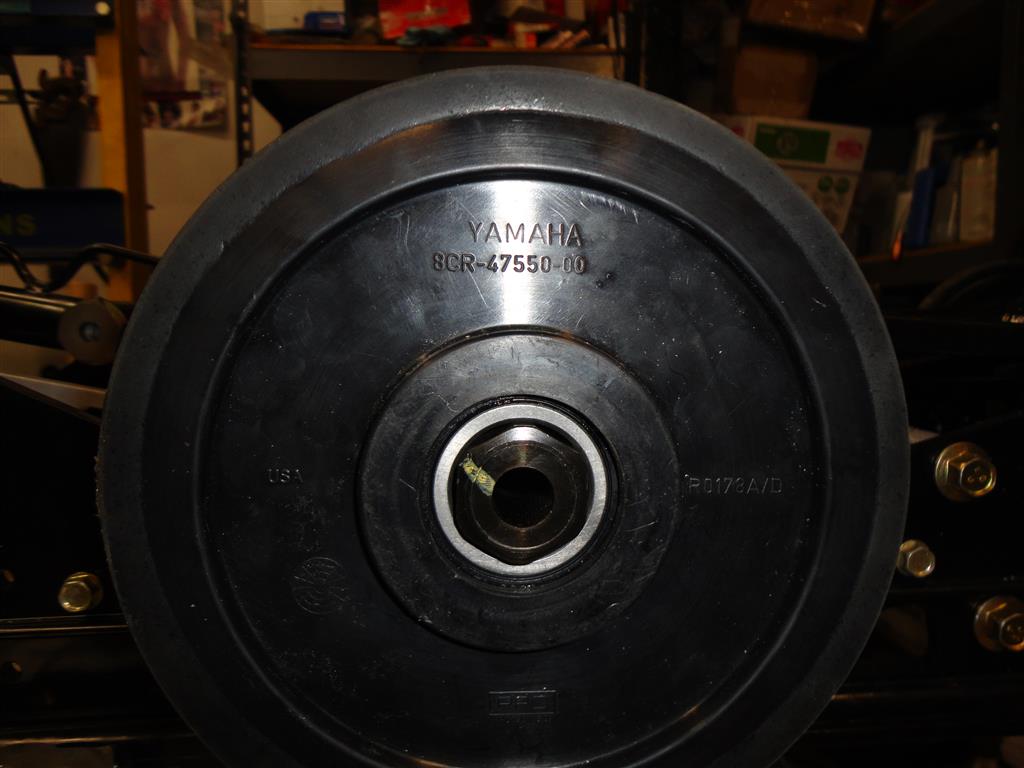

Just picked up the wheels today, they look good , these are going to be great. Tonka wheels would be a great upgrade compaired to the stock Yamaha wheels though



[cannondale27]

3-up did your wheels you got have China bearings in them?
